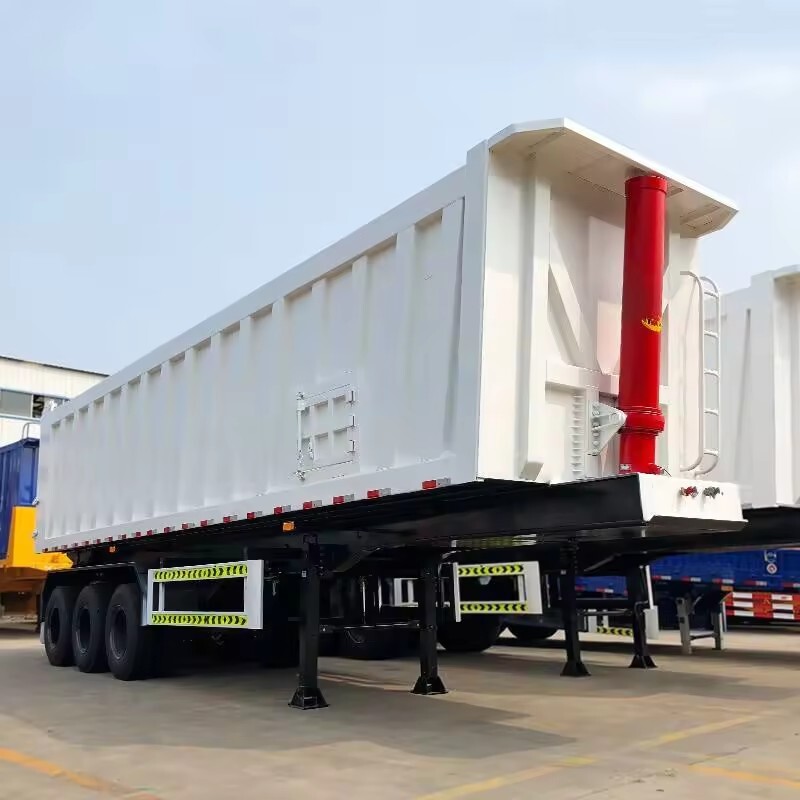

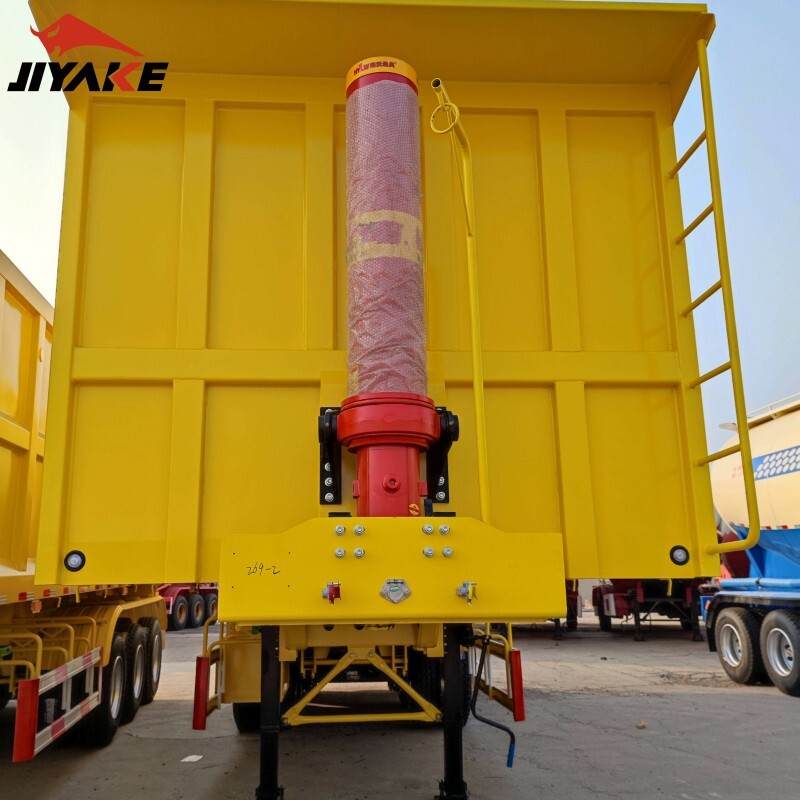

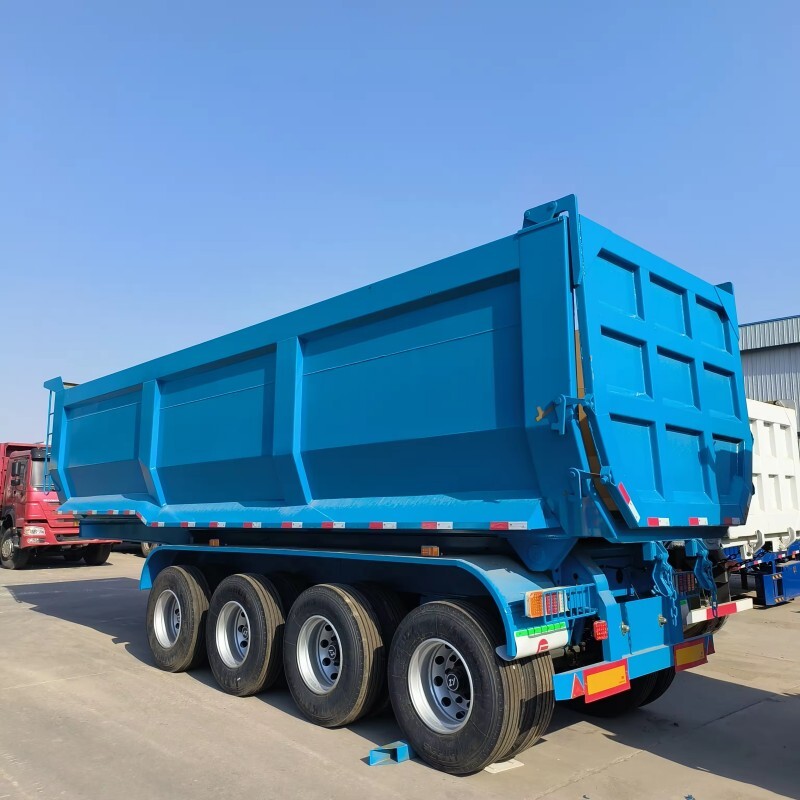

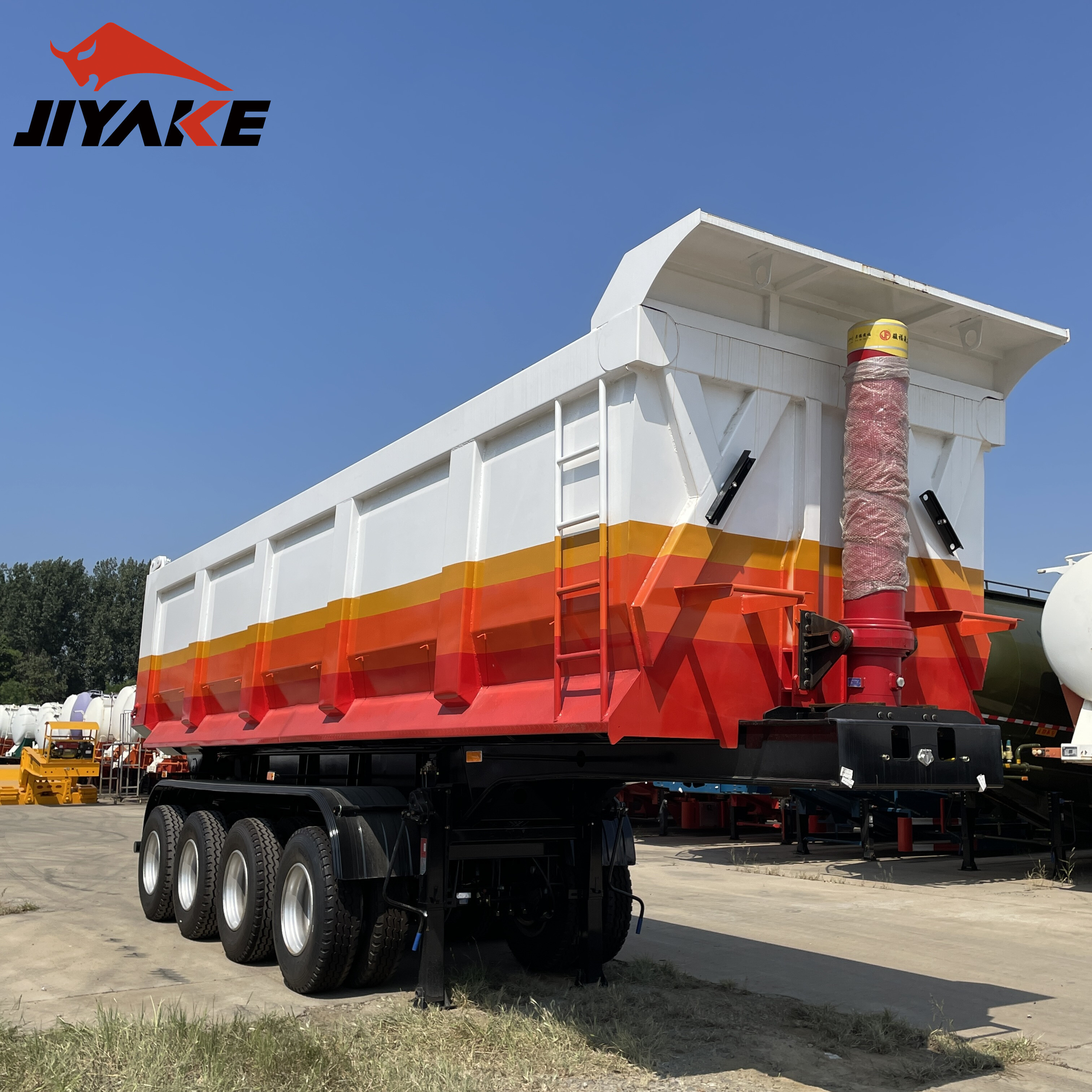

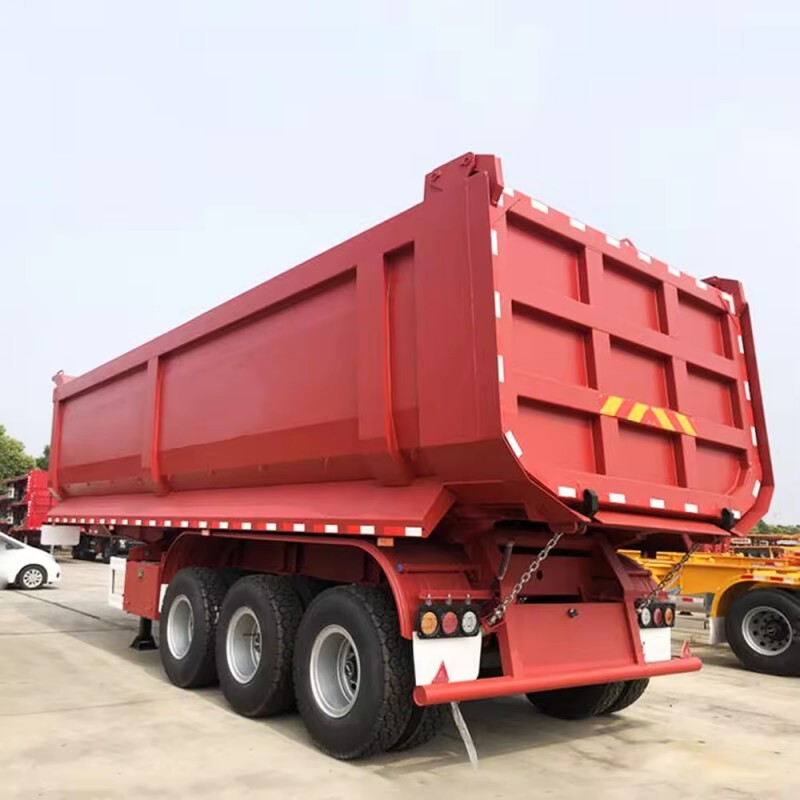

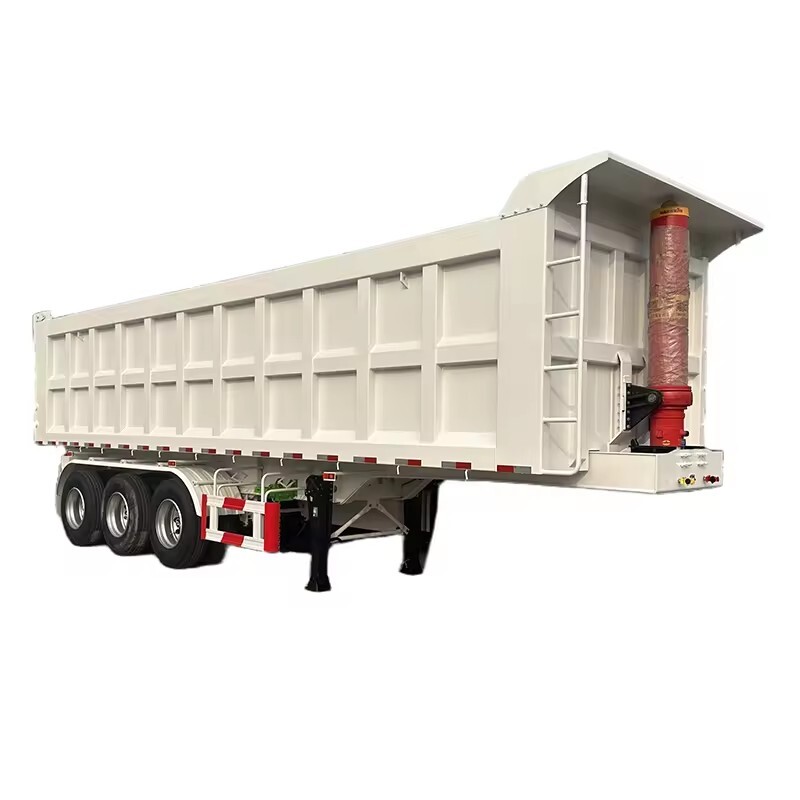

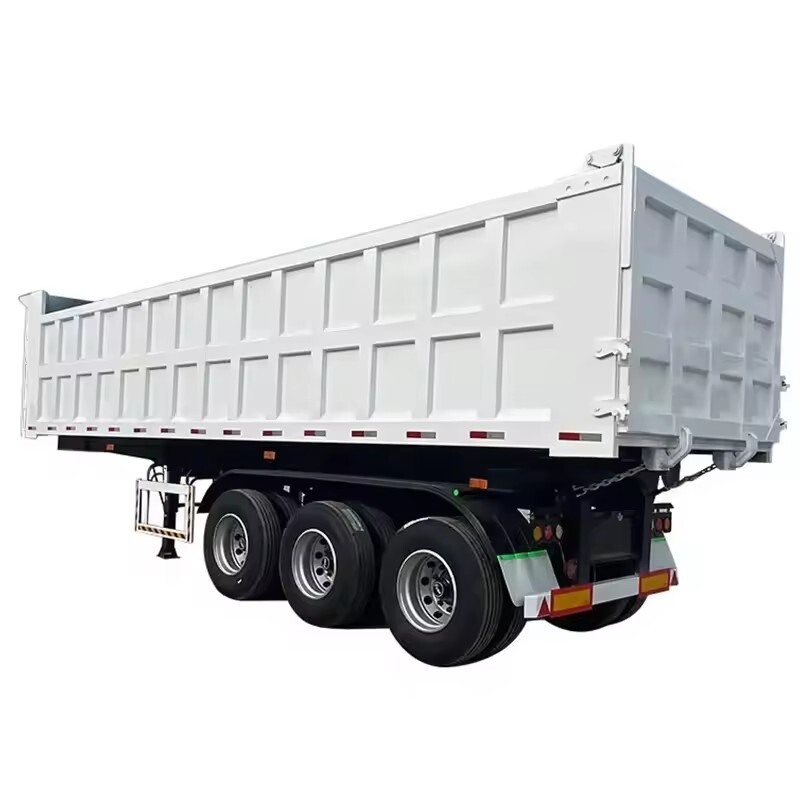

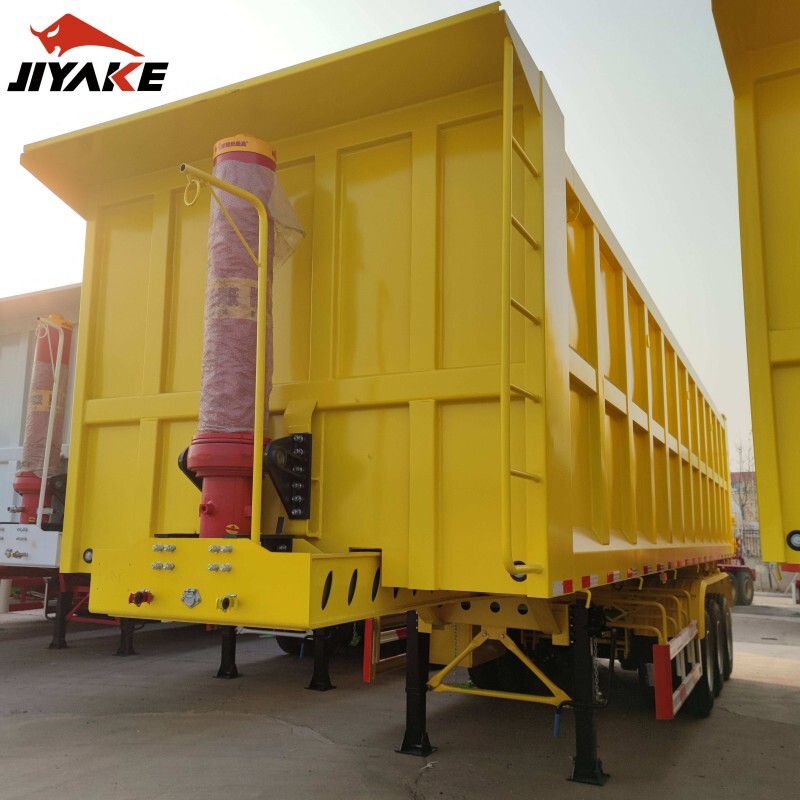

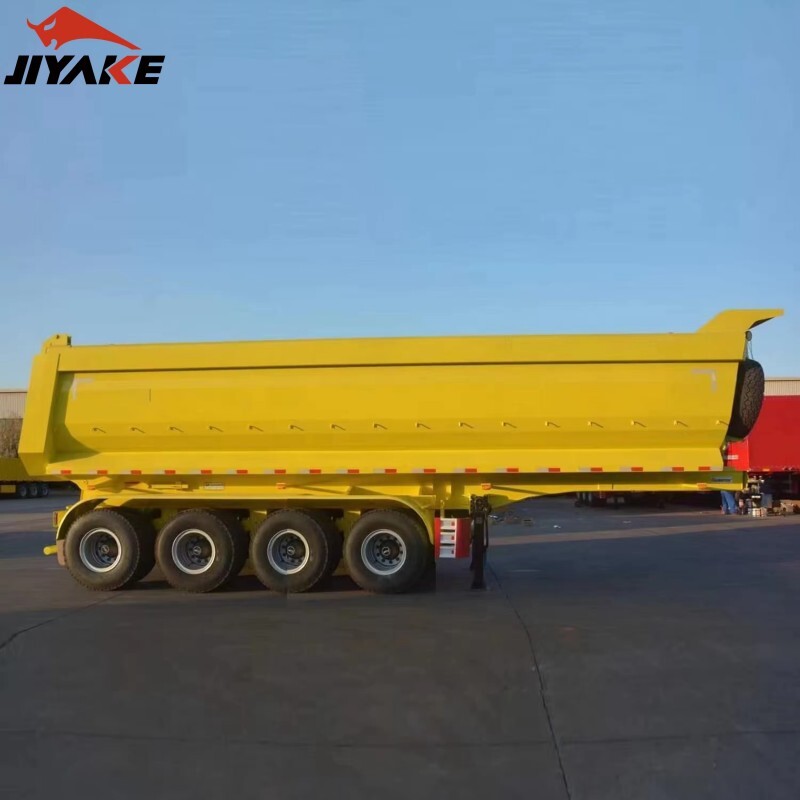

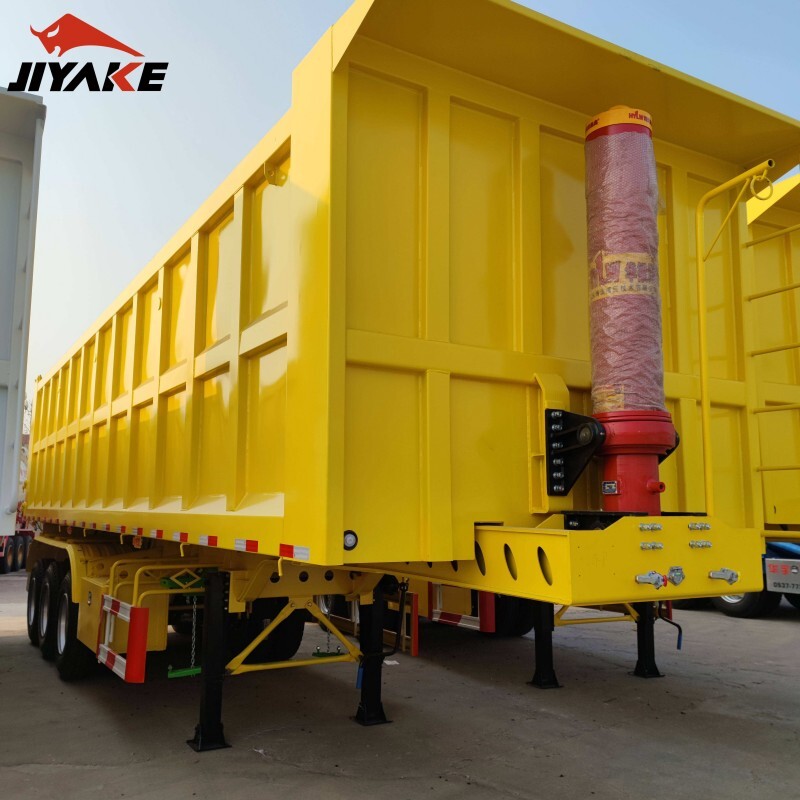

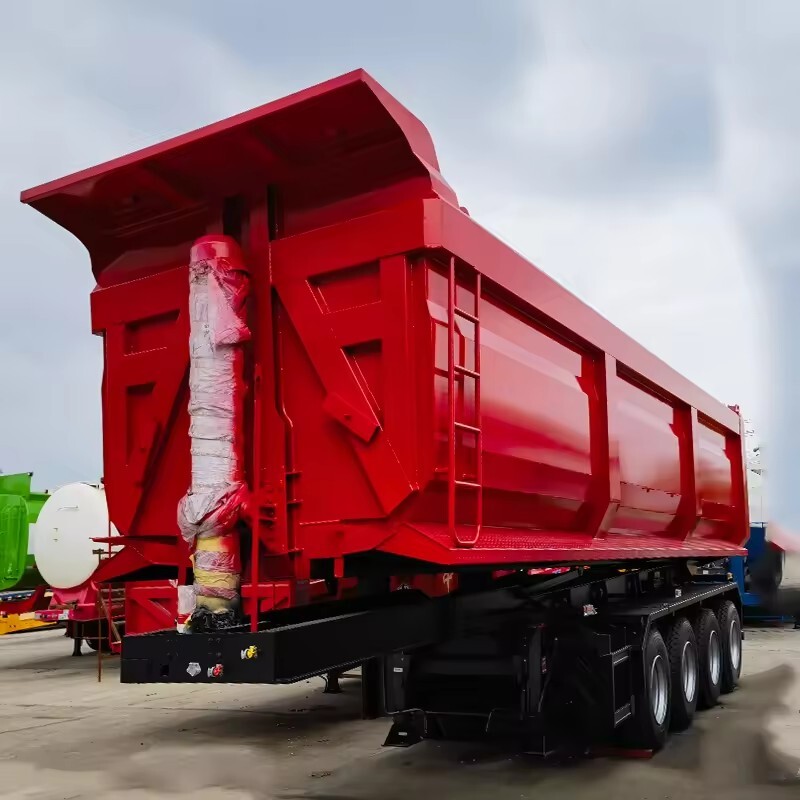

Dump Trailer

As a specialized transport vehicle with self dumping function, dump trucks play an indispensable role in the modern industrial system. This efficient and multifunctional transportation tool has been widely used in many fields such as mining, construction, agriculture, etc., significantly improving the efficiency and convenience of material transportation and effectively reducing labor costs.
Product Description

As a specialized transport vehicle with self dumping function, dump trucks play an indispensable role in the modern industrial system. This efficient and multifunctional transportation tool has been widely used in many fields such as mining, construction, agriculture, etc., significantly improving the efficiency and convenience of material transportation and effectively reducing labor costs.

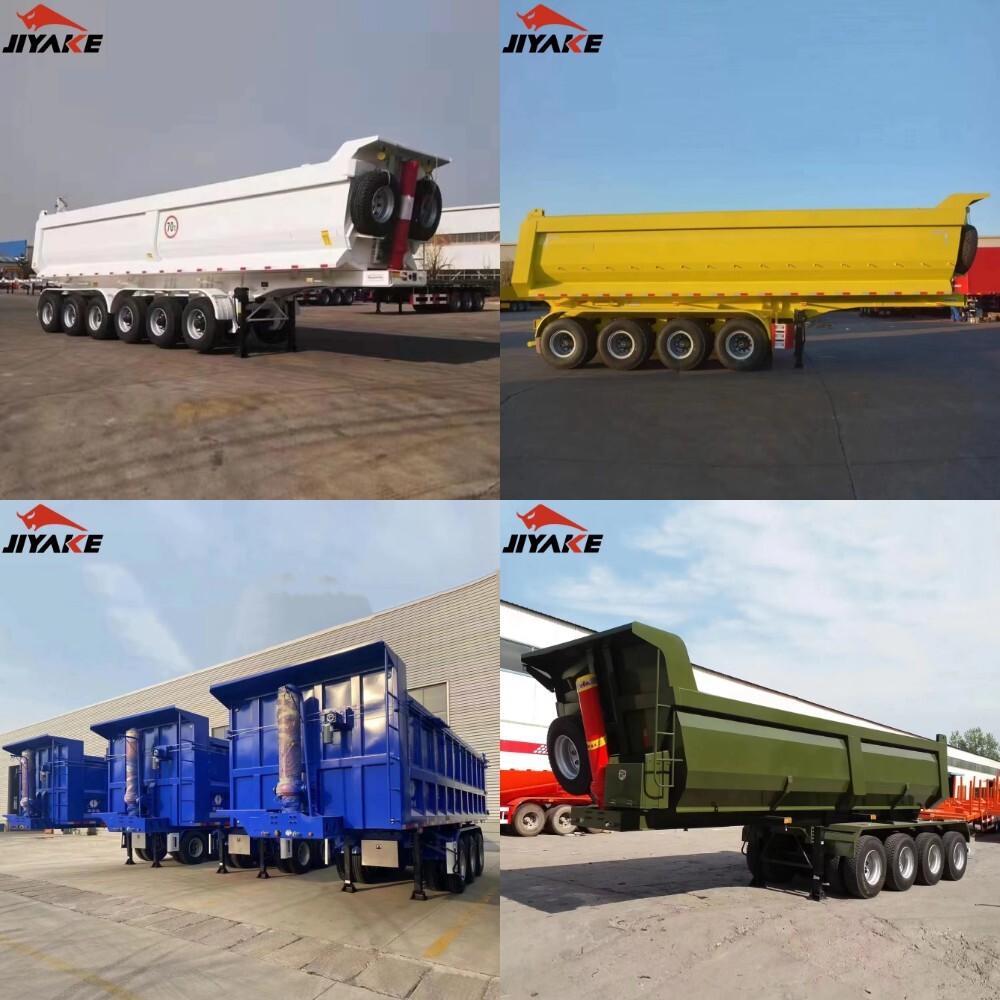

组 9@1x.jpg

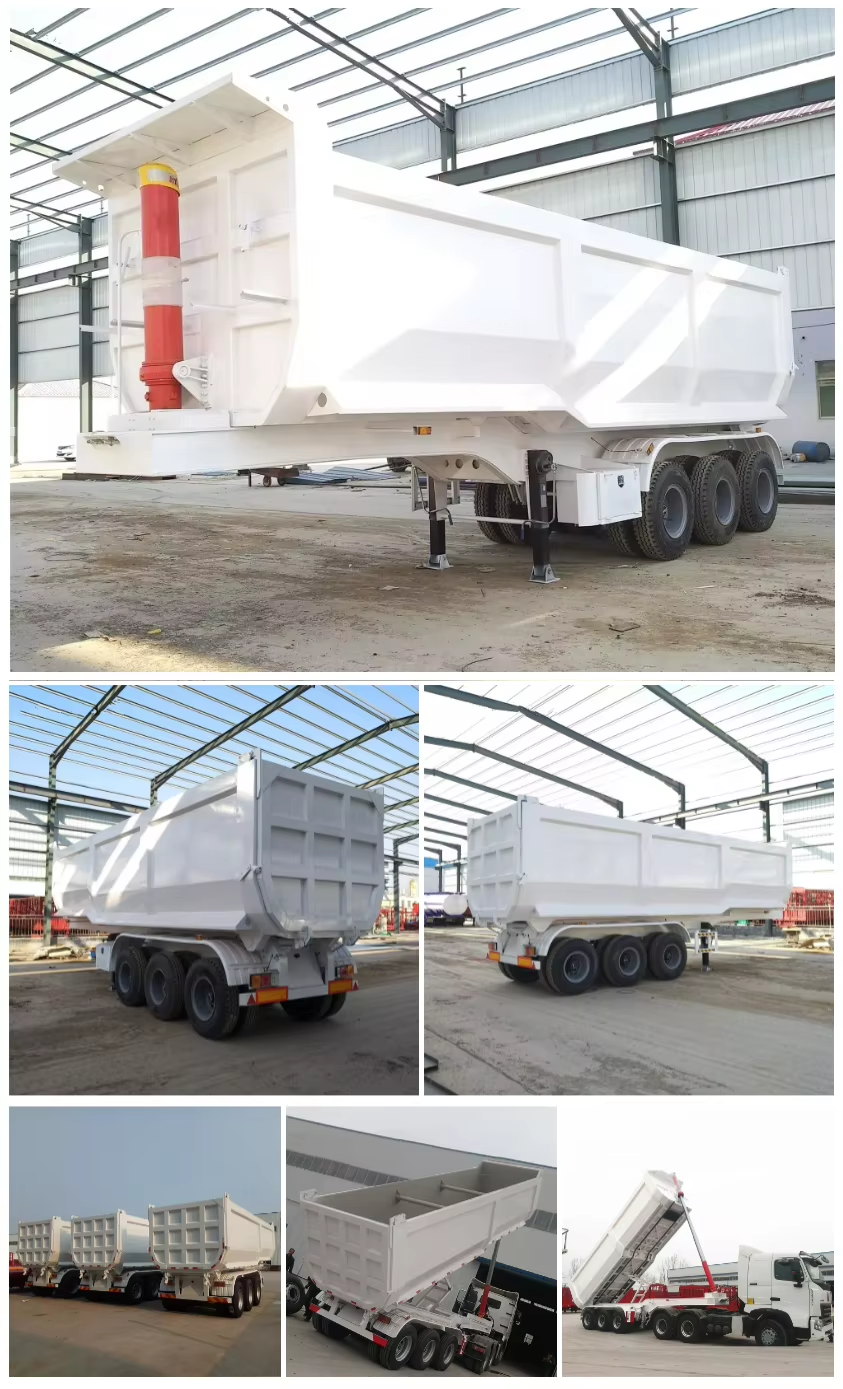

Product Detail Diagram

图片 5.png

Product Specifications
Product name3 axle 35m3 dump trailer
FunctionTransport sand, stone, gravel
Dimension
Overall Size (L×W×H)mm9800×2550×3860mm
Inner Size (L×W×H)mm8500×2330×1850mm
Wheel base6870+1310+1310mm
weight
Payload50,000kg
Tare weightApprox12,000kg
G.V.W.R.Approx 80,000kg
Body details
Main beamMaterial Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 10+10mm.
Body thickness6mm
Bottom thickness8mm
Hydraulic SystemFull set of china Hydraulic System 202
Frame
Axleheavy duty, 3×13Ton capacity, ZY brand
SuspensionLeaf spring suspension, 90mm×16mm×10pcs
Tire12R22.5 12units
Kingpin50mm/90mm removable
Landing gearYahua brand, 28ton, double speed, heavy duty
Tool box1pcs
Spare wheel carrier2pcs
Electrical system
Voltage24Volt
Receptacle7 way socket SAE standard,China
Front marker lampwhite
Side marker lampwhite&red
Rear lampred
Turn signal lampAmber
WiringElectric cable protected by PVC conduit on main frame
Brake system
BrakeDual line pneumatic brake,SAE hose and connector,no ABS
Brake air chamberSix big chamber
PaintingShot blast at Standard SA 2.5 prior to application of primer,polyurethane top coat. Total DFT not less than 100um
ColorAs customer requirement

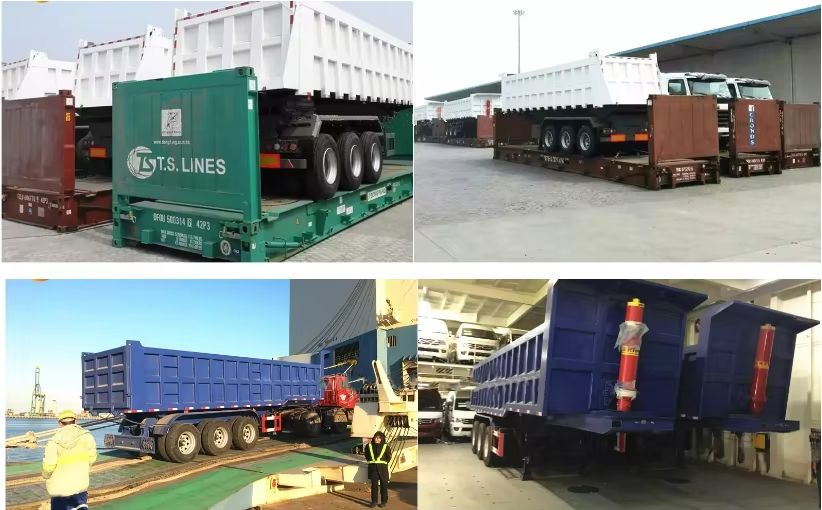

Packing and Shipping

图片 6.png

Message
Submit
FAQ

Q1. Why choose us? What difference from other suppliers?

Shandong Jiyake Automobile Sales Co., Ltd. is a vehicle manufacturer, which integrates production, scientific research and sales.
* Save your budget -- Manufacturer direct sale, no middleman.
* Quick Response -- Working all the time, all kinds of social media, you could contact us directly. Most problems can be solved within 12 hours.
* Delivery guarantee -- 25-40 days after receiving the deposit.
* Production tracking -- We will actively inform you of the production progress every week to ensure that you are aware of the production situation.
* Inspection -- A inspection report to you before delivery.
* After-sales service -- After-sale guarantee service, secure your order.

Q2. Which markets do your vehicle export to?

We exported the flatbed trailers, sidewall trailers, Fence trailer, dump trucks, tipper trailers,Low bed trailer to all over the
world, especially for the Africa Market and Mid east markets, the clients come from Djibouti, Ghana, Mozambique, Mauritania, Saudi Arabia, Tanzania, Benin, Indonesia, Thailand and so on.

Q3. What can you buy from us?

Semi Trailer, Flatbed Semi Trailer, Lowbed Semi Trailer, Dump Trailer, Tank Truck.

Q4. What information should I let you know if I want to get a quotation?

Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q5. Is it available to print our own brand on the vehicle?

Totally acceptable as you wish.
