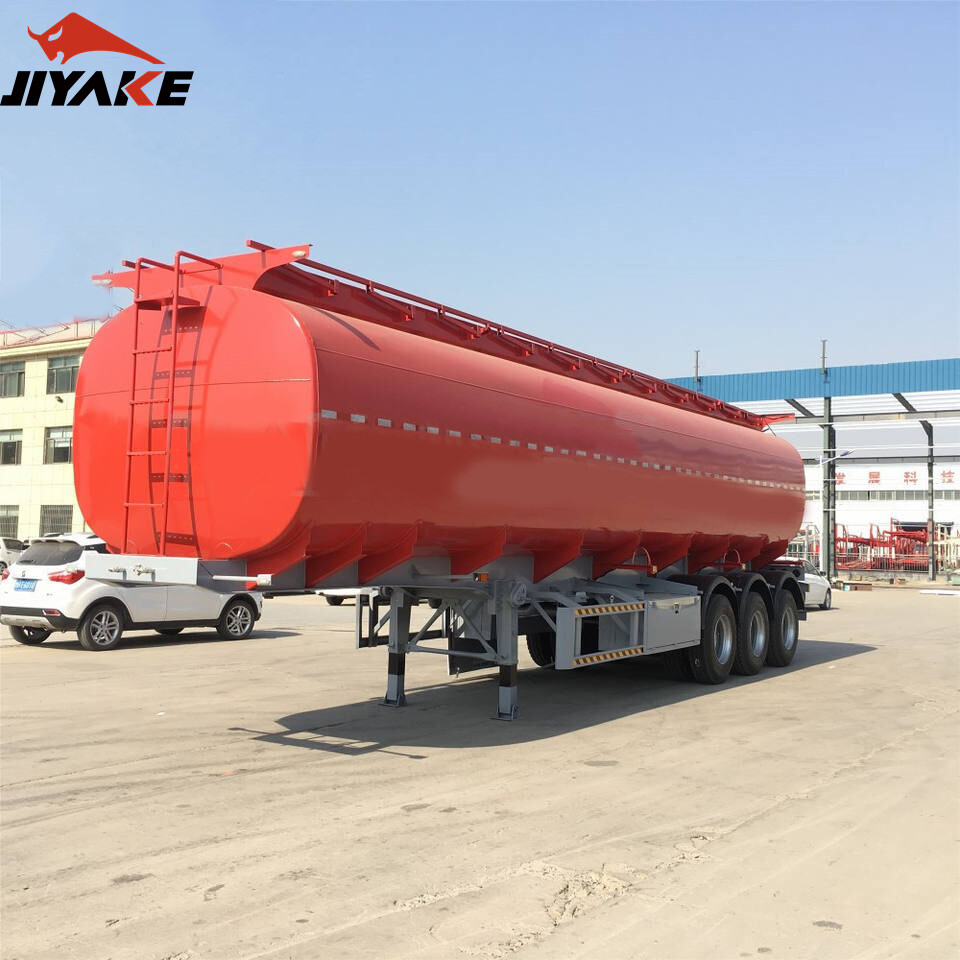

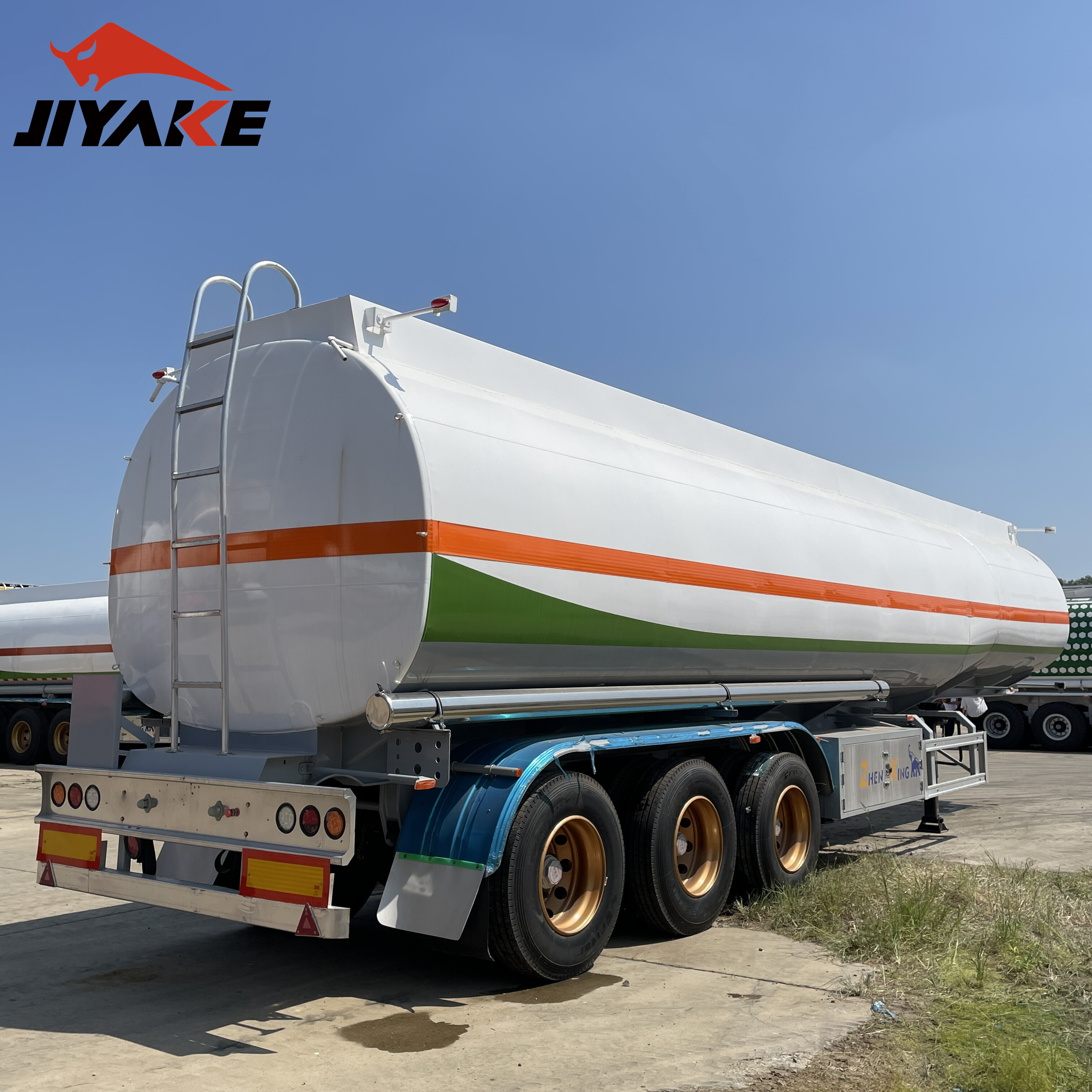

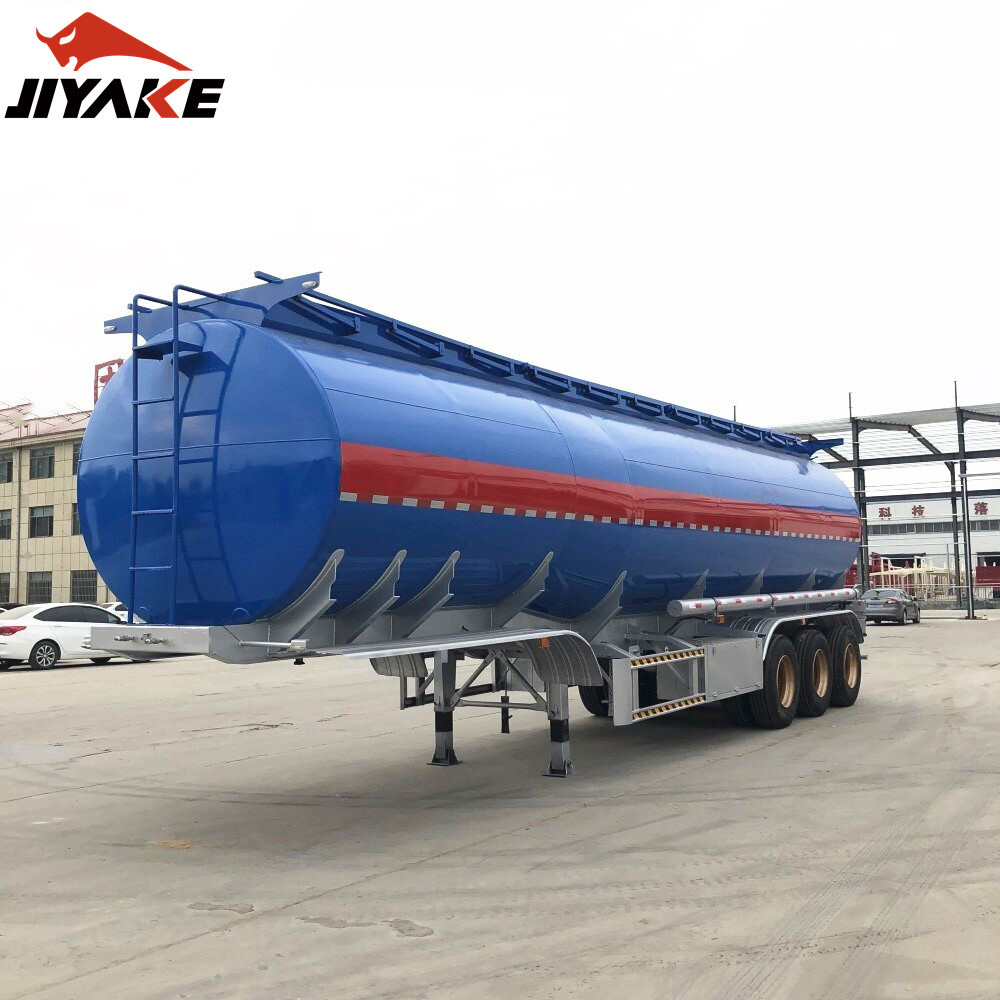

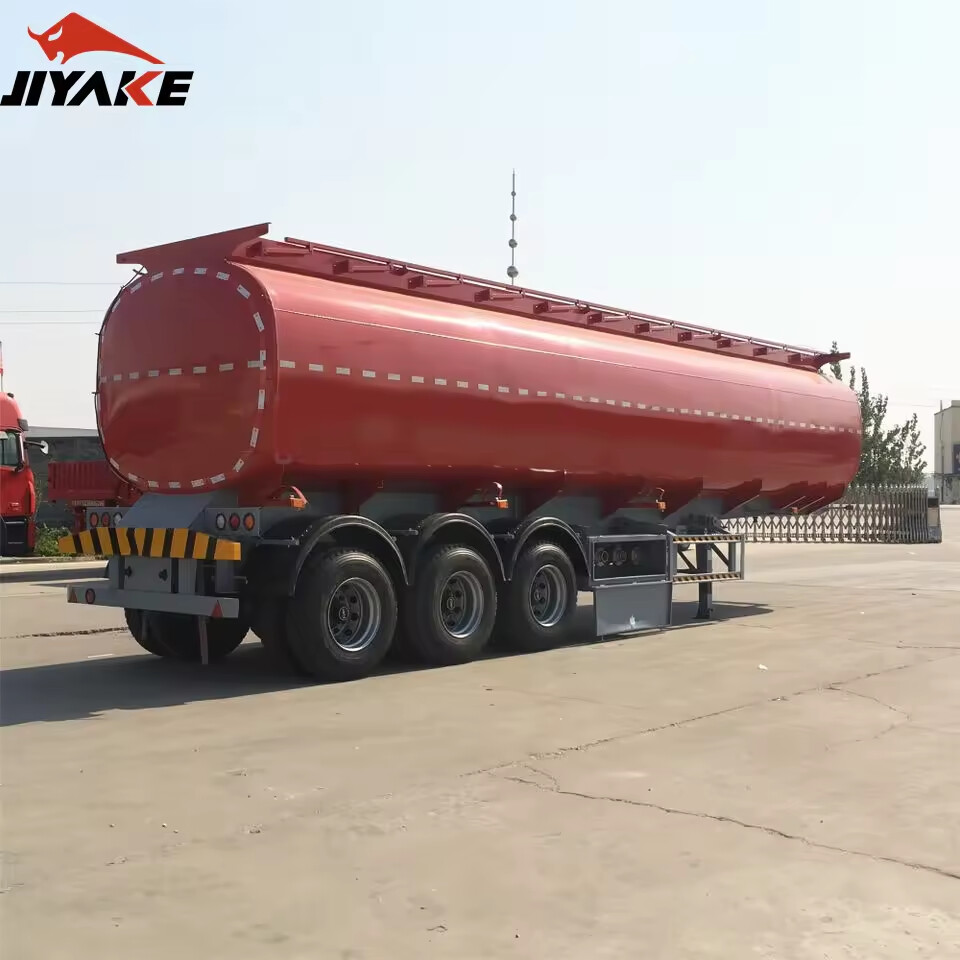

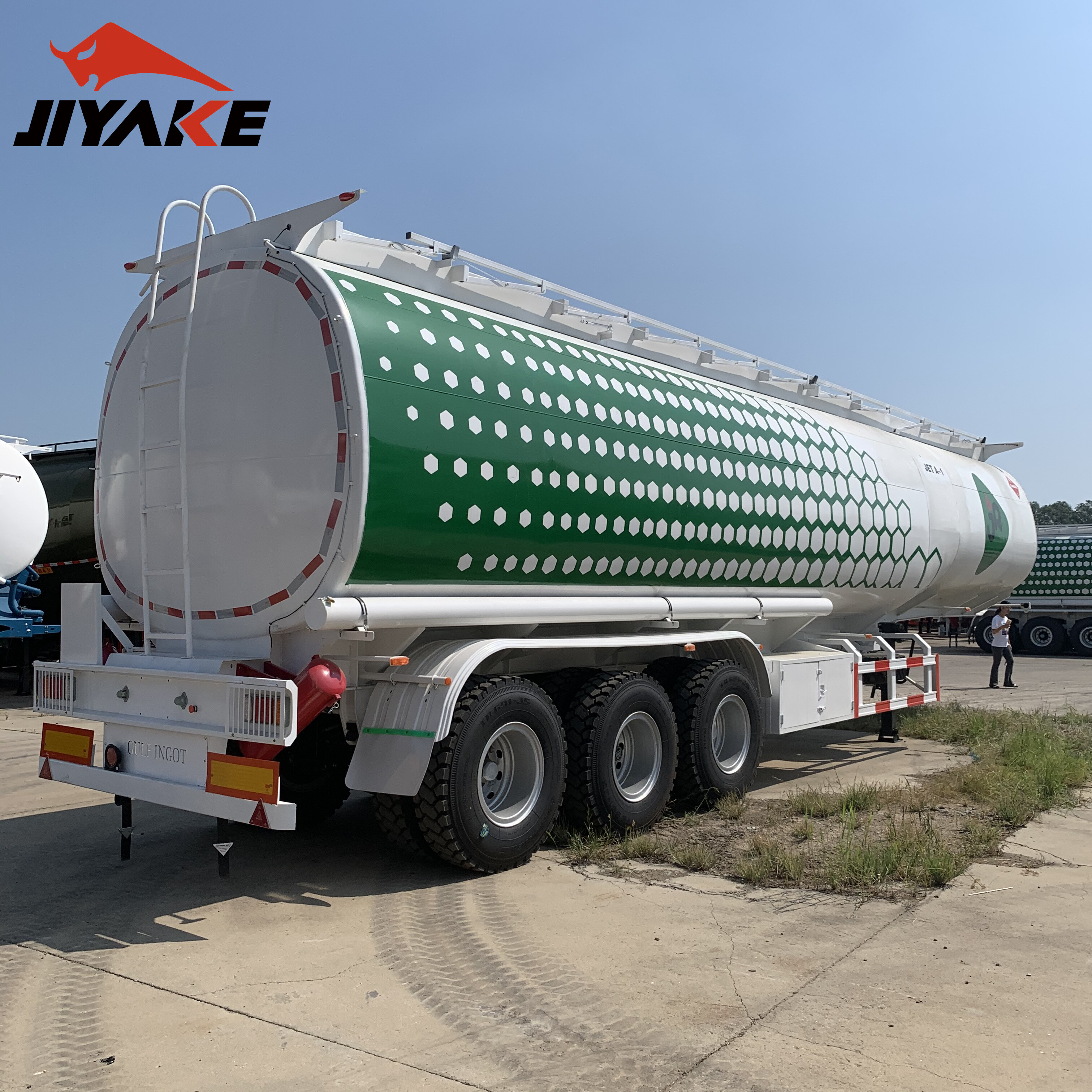

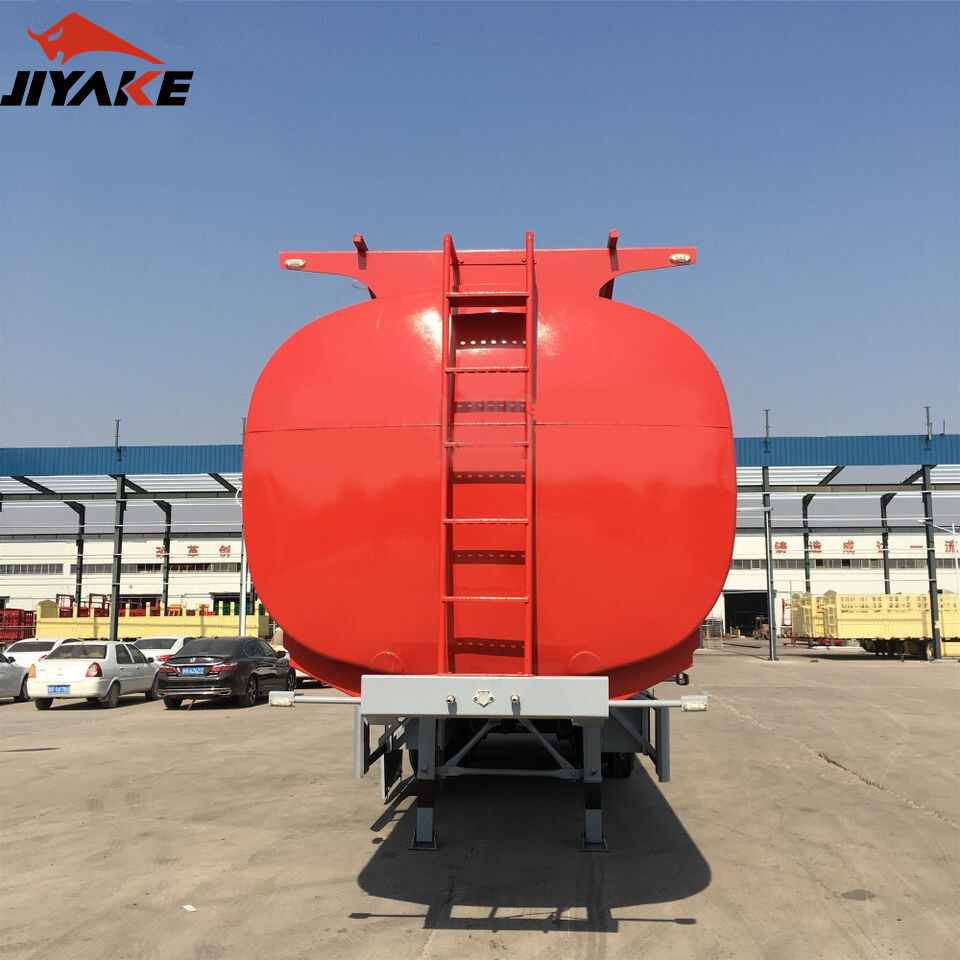

Fuel Tanker Trailer

An oil tanker is a tank type specialized vehicle equipped with an oil tank, a retractable oil pipeline, a dedicated refueling device, accessories, and safety protection devices. Oil tanker trucks generally load flammable and explosive hazardous chemicals, such as gasoline, diesel, kerosene and other light fuels.
Product Description

An oil tanker is a tank type specialized vehicle equipped with an oil tank, a retractable oil pipeline, a dedicated refueling device, accessories, and safety protection devices. Oil tanker trucks generally load flammable and explosive hazardous chemicals, such as gasoline, diesel, kerosene and other light fuels.


组 11@1x.jpg

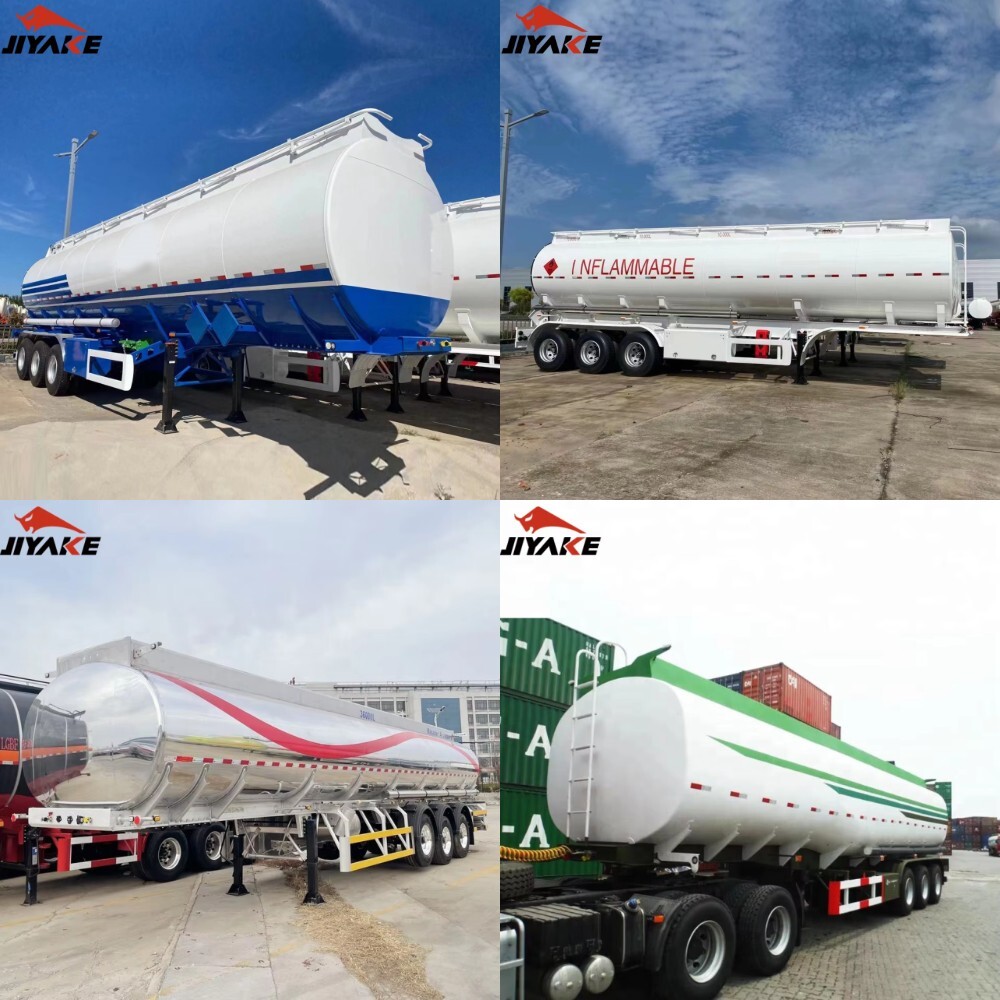

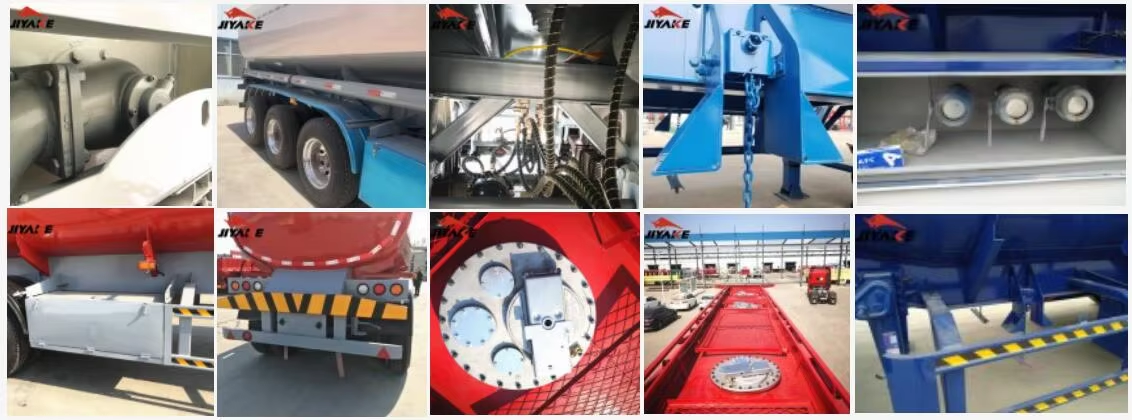

Product Detail Diagram

图片 5.png

Product Specifications
Tare Weight10000KG
Functiontransport Fuel, Oil, Diesel etc.
Overall length11900mmOverall width2500mmOverall height3500mm
Tank body ThicknessQ235/5mm carbon steelEnd plate ThicknessQ235/6mm carbon steel
Axle BrandZY brandLoading capacity13Ton heavy duty AxleAxle NumberThree
Volume40000L
Compartment3 compartments
Manhole cover500mm manhole cover. 3 sets
Discharge valve4 ''disc valve
Discharge pipe4 ''seamless steel tube
Suspension systemLeaf spring suspension
Bottom valve quantity3 units
Steel Spring10/10/10,90*13*10
Tire Type and quantity12R22.5TypeTubeless TireTire quantity12 units
Rim9.0-22.5
Traction Pin50mm(2.5``)/90mm(3``) removable
Spare Wheel Bracket2 pieces
Tool Box1 Standard
Landing GearStandard brand 28ton ,Double speed
Brake systemDual Line braking system
Brake air chamberSix big double air chambers
Electrical systemVoltage24v
Receptacle7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side GuardAccording to customer's requirement
ColorAccording to customer's requirement
Paintingone layer of bottom painting and two layers of surface painting after sand blasting.The paint is the domestic popular polyurethane paint.
PackingPainting with wax before delivery to avoid the trailer get rusty,

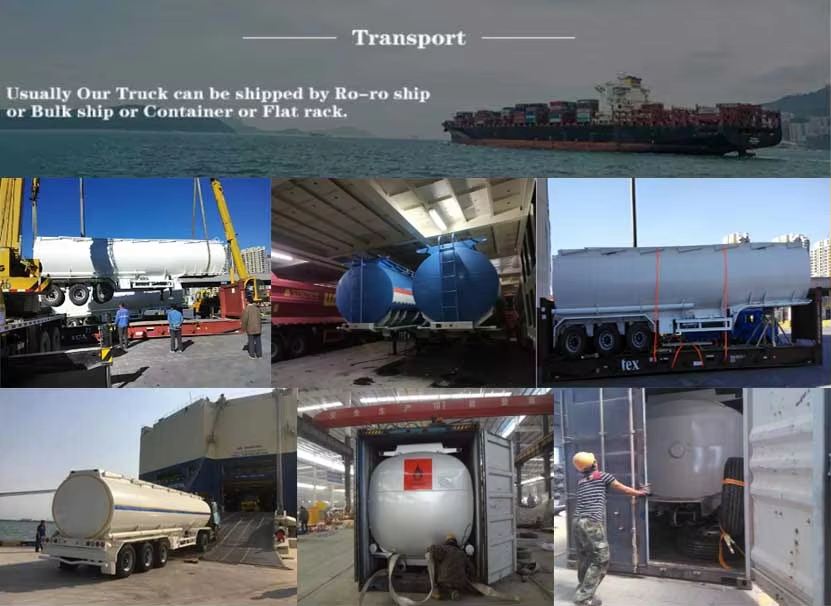

Packing and Shipping

图片 6.png

Message
Submit
FAQ

Q1. Why choose us? What difference from other suppliers?

Shandong Jiyake Automobile Sales Co., Ltd. is a vehicle manufacturer, which integrates production, scientific research and sales.
* Save your budget -- Manufacturer direct sale, no middleman.
* Quick Response -- Working all the time, all kinds of social media, you could contact us directly. Most problems can be solved within 12 hours.
* Delivery guarantee -- 25-40 days after receiving the deposit.
* Production tracking -- We will actively inform you of the production progress every week to ensure that you are aware of the production situation.
* Inspection -- A inspection report to you before delivery.
* After-sales service -- After-sale guarantee service, secure your order.

Q2. Which markets do your vehicle export to?

We exported the flatbed trailers, sidewall trailers, Fence trailer, dump trucks, tipper trailers,Low bed trailer to all over the
world, especially for the Africa Market and Mid east markets, the clients come from Djibouti, Ghana, Mozambique, Mauritania, Saudi Arabia, Tanzania, Benin, Indonesia, Thailand and so on.

Q3. What can you buy from us?

Semi Trailer, Flatbed Semi Trailer, Lowbed Semi Trailer, Dump Trailer, Tank Truck.

Q4. What information should I let you know if I want to get a quotation?

Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q5. Is it available to print our own brand on the vehicle?

Totally acceptable as you wish.
