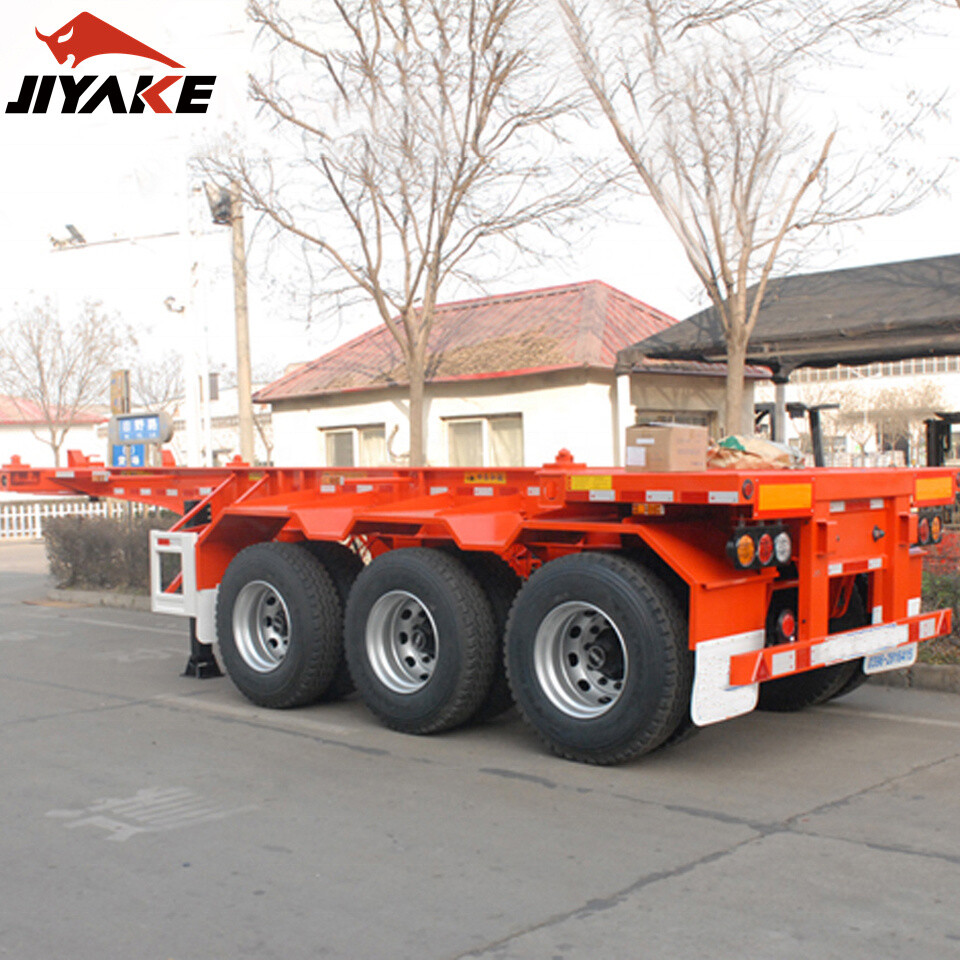

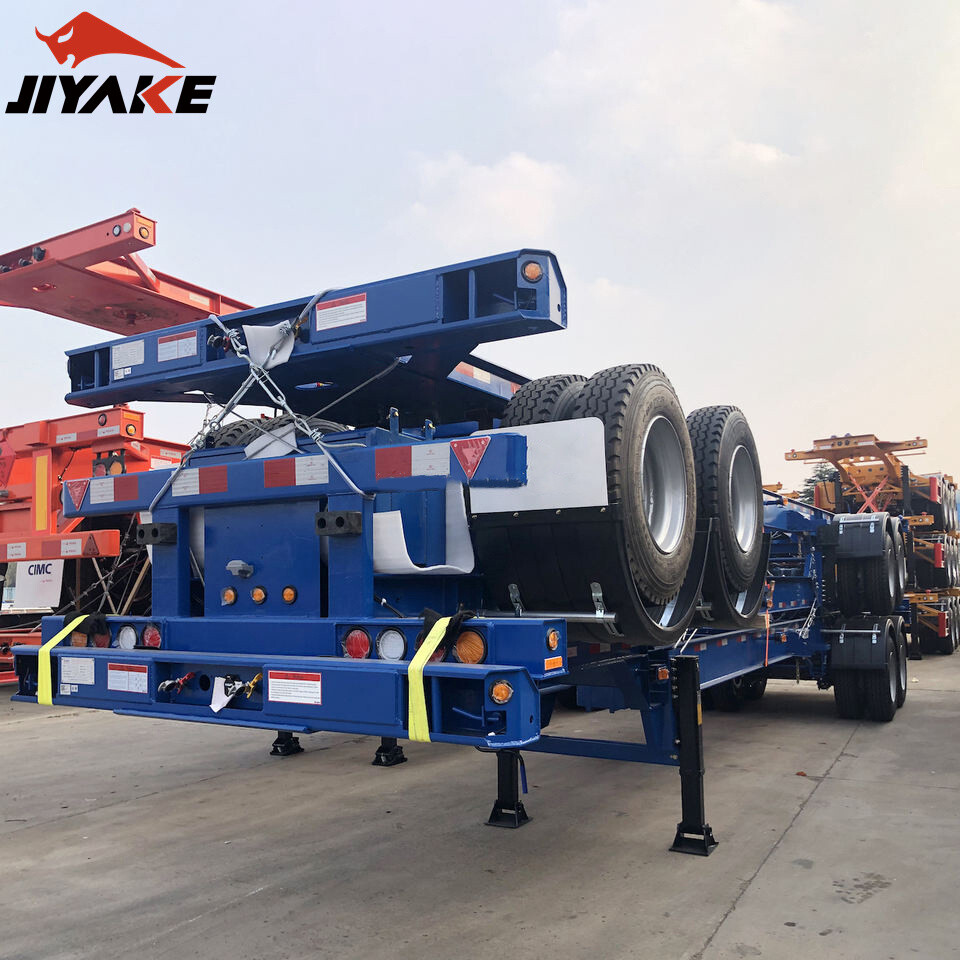

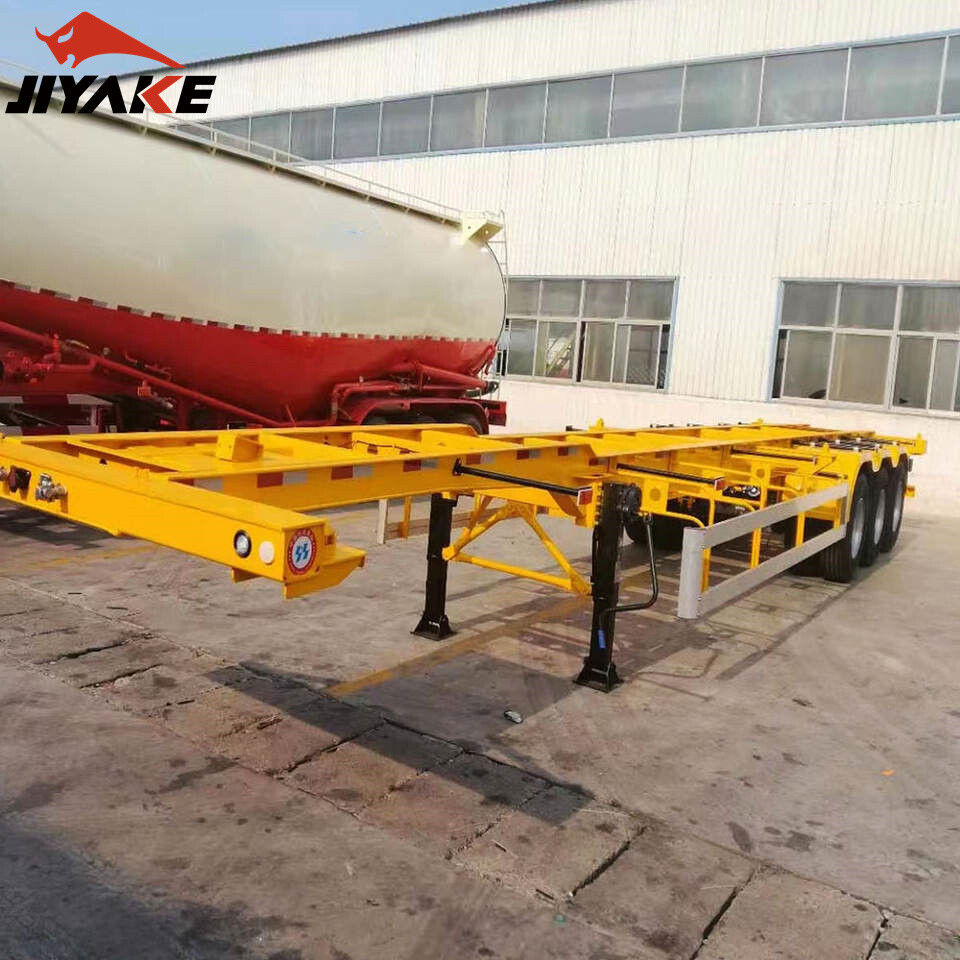

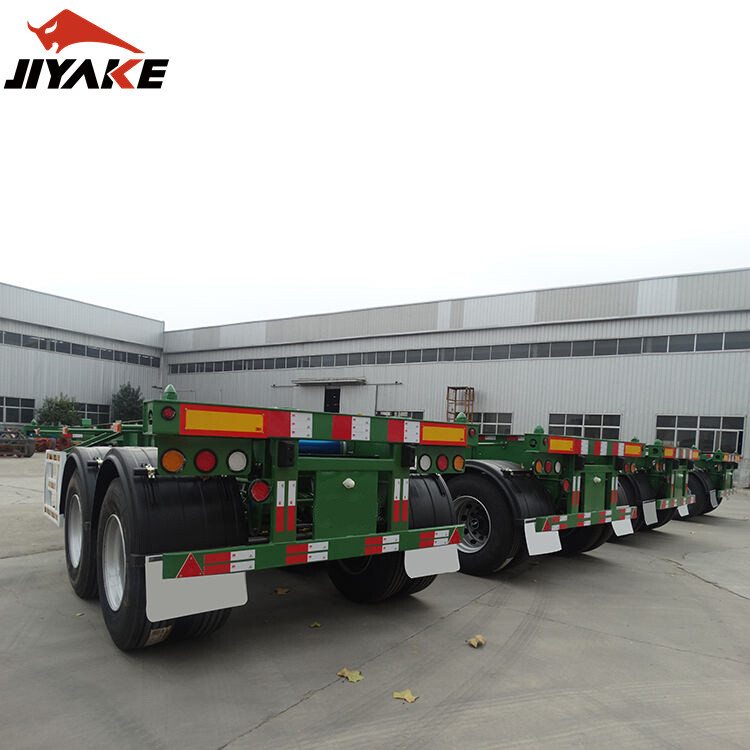

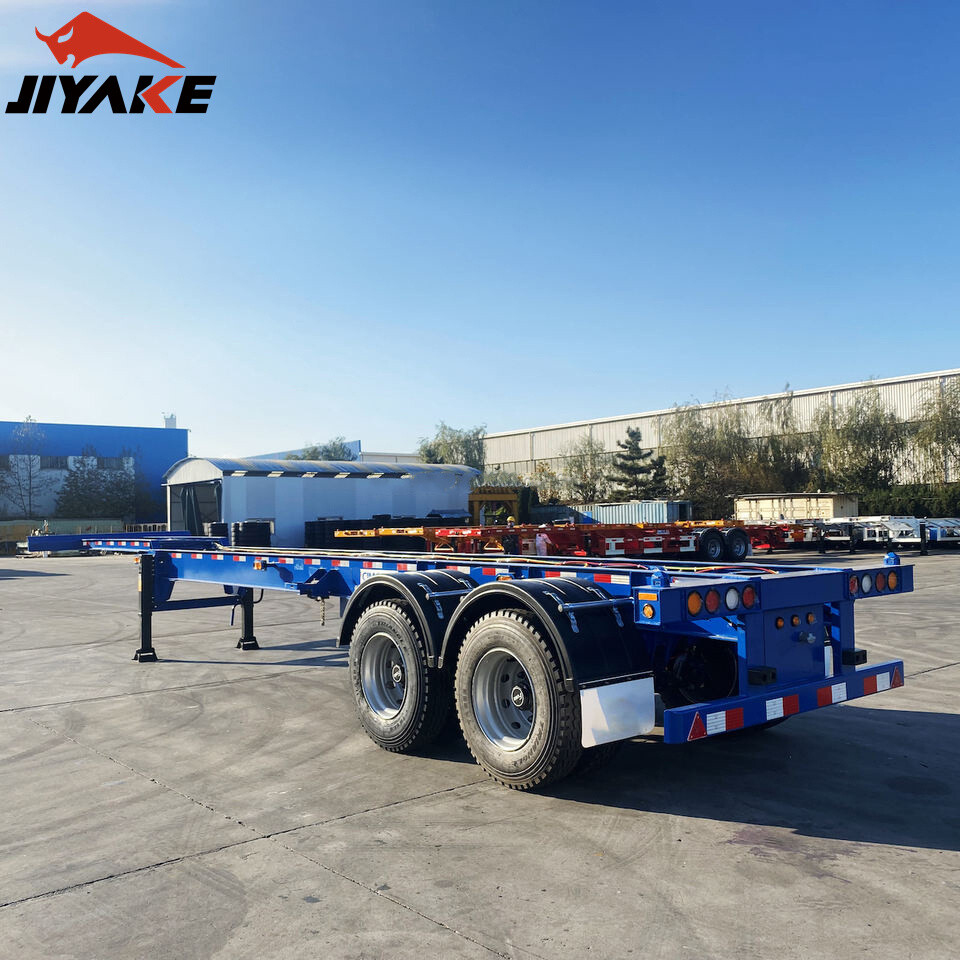

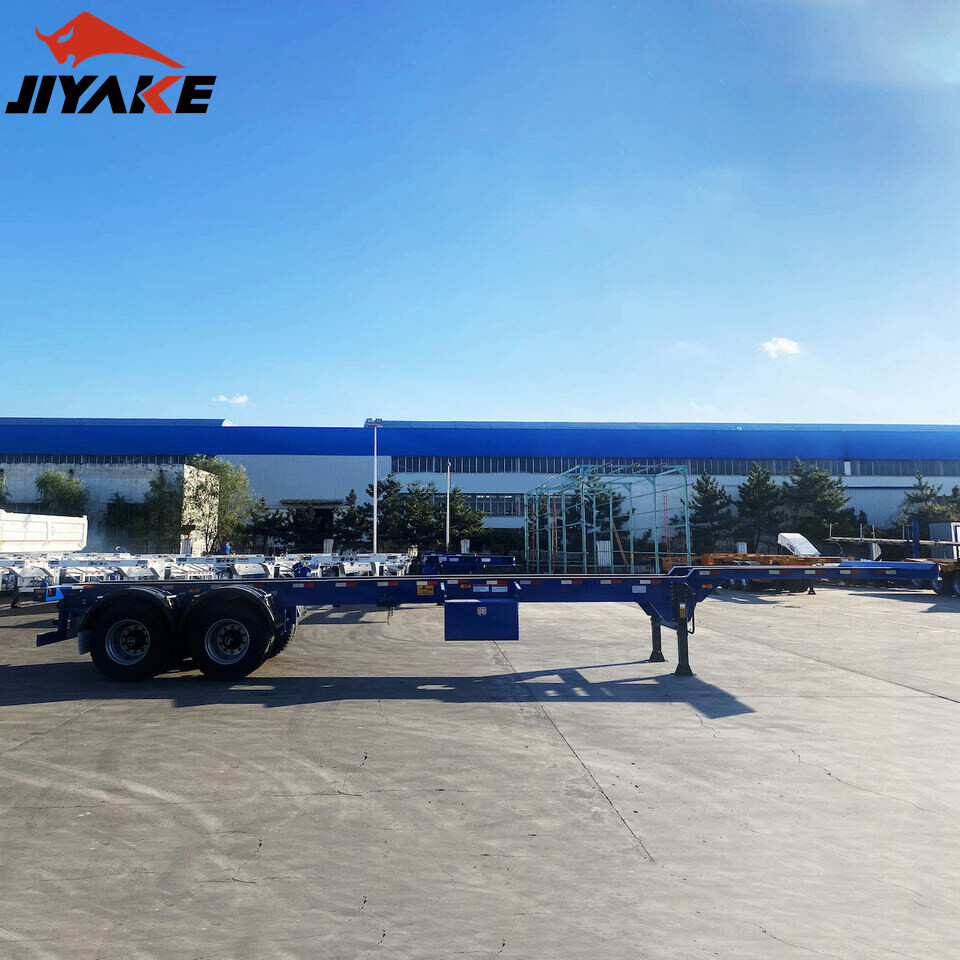

Skeleton Trailer

Skeleton container transport semi-trailer, commonly known as skeleton vehicle, is a basic definition of container transport semi-trailer. It refers to a semi-trailer with a container structure as the cargo carrying part, mainly suitable for ships, ports, routes, highways, and multimodal logistics transportation systems. According to the different design structures, container transport semi trailers can be divided into two types: flat plate type and skeleton type; According to the difference in appearance, it can be classified into two types: straight frame style and goose neck style.
CONTACT US
MESSAGE
Product Description

Skeleton container transport semi-trailer, commonly known as skeleton vehicle, is a basic definition of container transport semi-trailer. It refers to a semi-trailer with a container structure as the cargo carrying part, mainly suitable for ships, ports, routes, highways, and multimodal logistics transportation systems. According to the different design structures, container transport semi trailers can be divided into two types: flat plate type and skeleton type; According to the difference in appearance, it can be classified into two types: straight frame style and goose neck style.
Product Detail Diagram

骨架半挂车-黑 (1).jpg

Product Specifications

Trailer Model3 Axle low bed Semi Trailer
Total size13000*3000*1650mm
Working size(LxWxH)9000*3000*1250mm
Curb Weight(KG)  9000
Loading Weight(KG)60 ton common good or 40ton vehicles or machinery with wheels or tracks(concentrated stress on the trailer)
Axle 3*13 ton Fuwa axle(optional)
Wheelbase(mm)8580+1310+1310
Suspension systemMechanical Leaf Spring Suspension/Air/Bogie
Leaf Spring90(W)mm*16(Thick)mm*10 Layer
10/10/10 leaf spring suspension
The Main BeamQ345B carbon steel,the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Side Beam Q235 20# channel steel
Platform plate3mm Diamond plate
Tire Type and quantity11.00R20 12units
Ladder With Ladder
Traction Pin2" or 3.5", Jost brand (optional)
Spare Wheel Bracket2 pieces
Tool Box 1 Standard
Landing Gear 28Ton standard 2 speeds, Yahua brand(optional)
Brake systemWABCO RE6 relay valve ;T30/30 spring brake chamber;
40L air tanks
Dual Line braking system
(Steel tube line for low temperature)
Brake air chamberSix double chamber
Electrical system1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint
ShippingShipped by bulk cargo ship, Roll-roll ship or in container
Packing and Shipping
Message
Submit
FAQ

Q1. Why choose us? What difference from other suppliers?

Shandong Jiyake Automobile Sales Co., Ltd. is a vehicle manufacturer, which integrates production, scientific research and sales.
* Save your budget -- Manufacturer direct sale, no middleman.
* Quick Response -- Working all the time, all kinds of social media, you could contact us directly. Most problems can be solved within 12 hours.
* Delivery guarantee -- 25-40 days after receiving the deposit.
* Production tracking -- We will actively inform you of the production progress every week to ensure that you are aware of the production situation.
* Inspection -- A inspection report to you before delivery.
* After-sales service -- After-sale guarantee service, secure your order.

Q2. Which markets do your vehicle export to?

We exported the flatbed trailers, sidewall trailers, Fence trailer, dump trucks, tipper trailers,Low bed trailer to all over the
world, especially for the Africa Market and Mid east markets, the clients come from Djibouti, Ghana, Mozambique, Mauritania, Saudi Arabia, Tanzania, Benin, Indonesia, Thailand and so on.

Q3. What can you buy from us?

Semi Trailer, Flatbed Semi Trailer, Lowbed Semi Trailer, Dump Trailer, Tank Truck.

Q4. What information should I let you know if I want to get a quotation?

Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q5. Is it available to print our own brand on the vehicle?

Totally acceptable as you wish.
