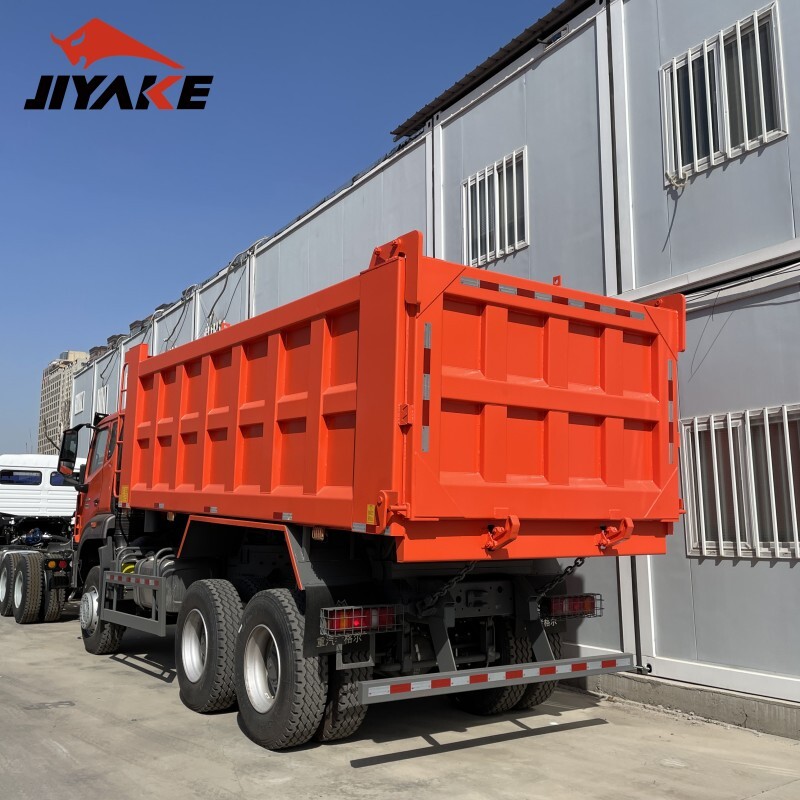

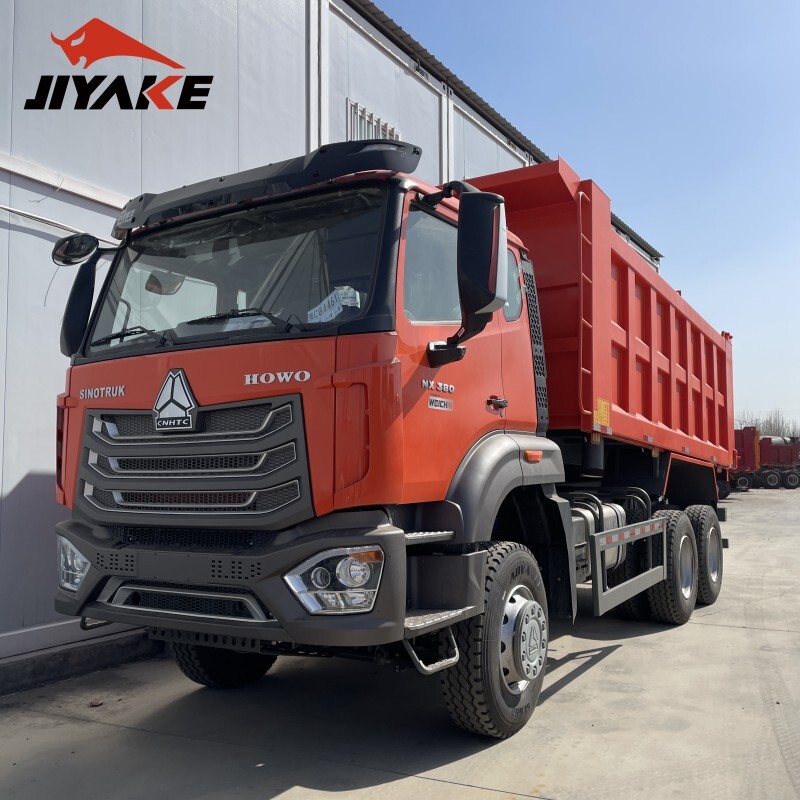

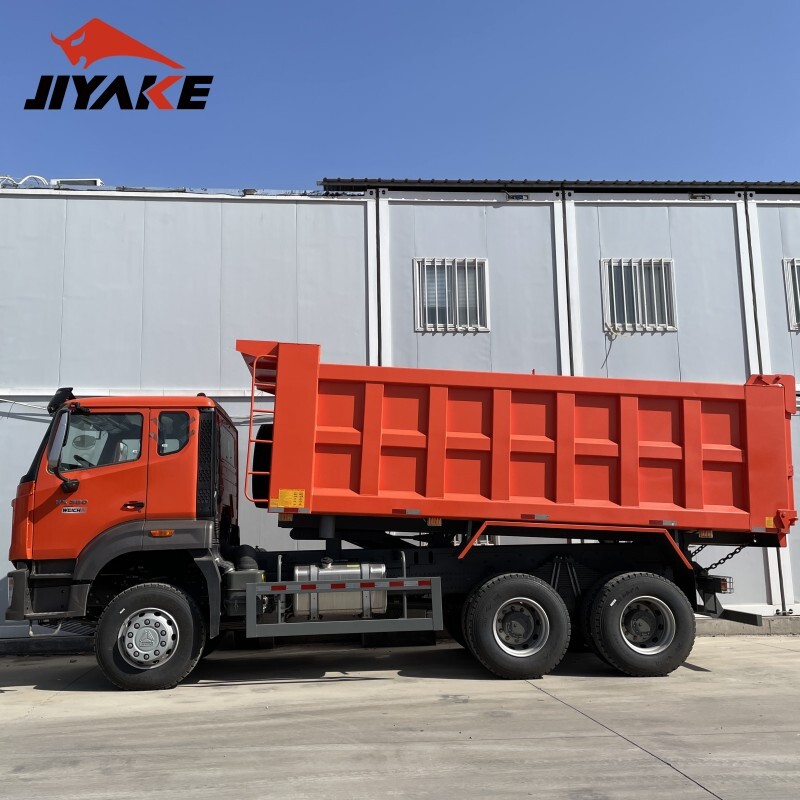

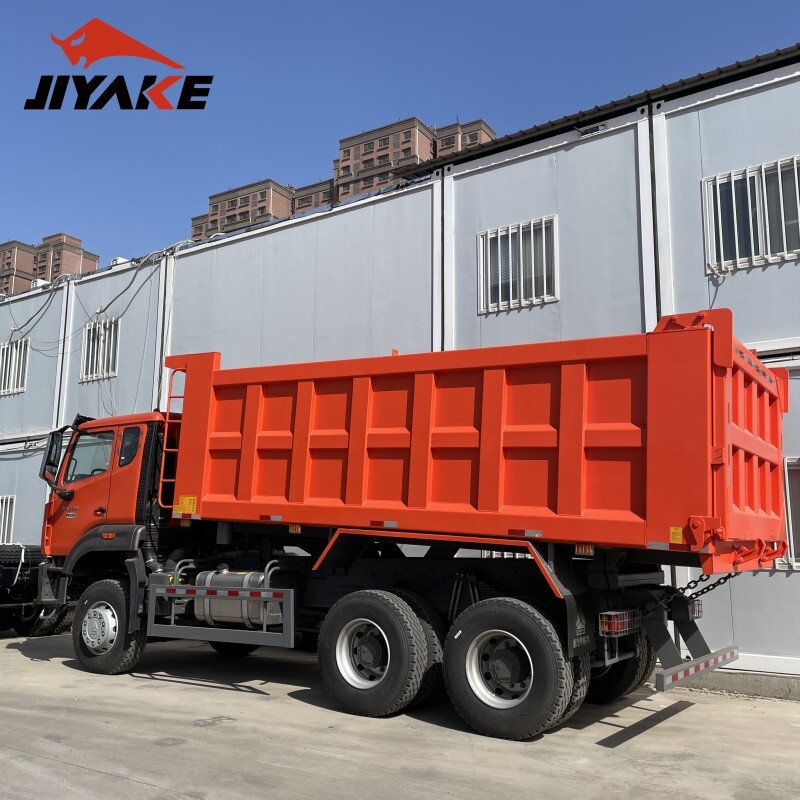

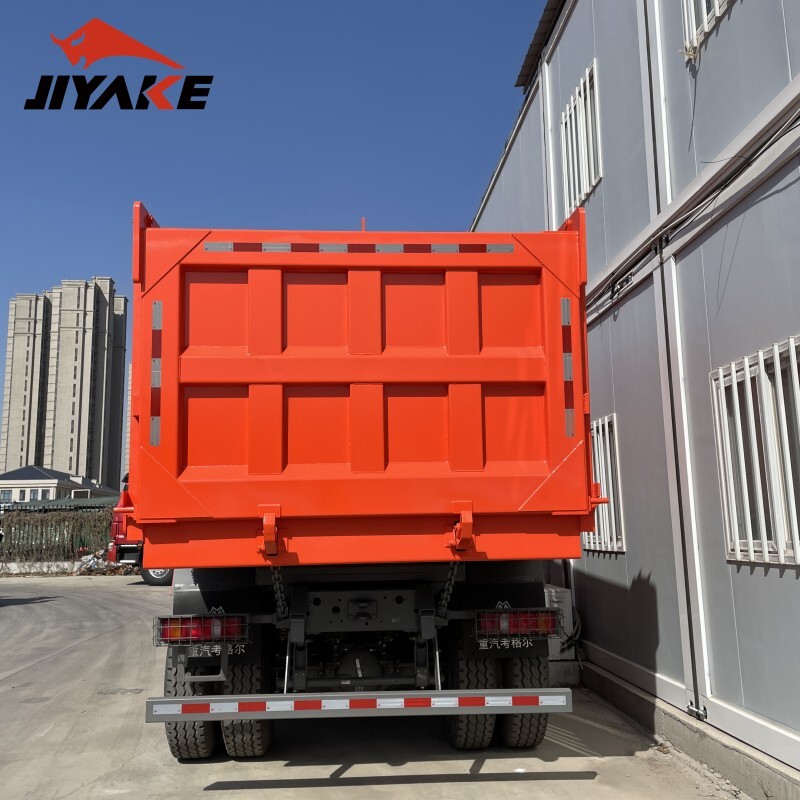

Dump Truck

A dump truck refers to a vehicle equipped with an automatic dumping device in its compartment. Also known as a dump truck or engineering vehicle, it consists of a car chassis, hydraulic lifting mechanism, power take-off device, and cargo compartment. In civil engineering, it is common to work together with excavators, loaders, belt conveyors, etc. to form a loading, transportation, and unloading production line for the loading, unloading, and transportation of earthworks, sand and gravel, and loose materials.
CONTACT US
MESSAGE
Product Description

A dump truck refers to a vehicle equipped with an automatic dumping device in its compartment. Also known as a dump truck or engineering vehicle, it consists of a car chassis, hydraulic lifting mechanism, power take-off device, and cargo compartment. In civil engineering, it is common to work together with excavators, loaders, belt conveyors, etc. to form a loading, transportation, and unloading production line for the loading, unloading, and transportation of earthworks, sand and gravel, and loose materials.


组 14@1x.jpg


Product Detail Diagram


Product Specifications
Truck ModelZZ3257V384JB1
Truck BrandHOWO
Driving StyleLeft Hand Driving
Dimension(Lx W x H) (unloaded) (mm)8265x2496x3490
Cargo body size (L*W*H, mm) (mm)5600x2300x1500mm 19.32m3
Cargo thickness(mm)Bottom:8mm, Side:6mm
Lift type of CarriageMiddle lifting system
Approaching angle/Departure angle (°)20/26
Overhang(front/rear) (mm)1540/1750
Wheel base (mm)3625+1350
Max speed (km/h)78
Curb weight (kg)12270
Loading Weight (kg)30,000
Fuel tanker capacity (L)300
ClutchSingle-plate dry clutch Φ430mm
Engine400hp Weichai Diesel Engine WP12.430E201 ，Euro 2 ,water-cooled，four strokes，6 cylinders in line with water cooling，turbochargedand intercooling
TransmissionHW19710, 10 forwards and 2 reverse
Brake system1.Service brake:Dual circuit compressed air brake2.Parking brake:spring energy, compressed air operating on rear wheels3.Auxiliary brake:Engine exhaust brake
Steering systemZF8118 hydraulic steering with power assistance
Front axleVGD95
Driving axleHC16 Double Rear Axles
ColorOptional (White ,Red ,yellow )
Tyre12.00R20 radial tires, 10+1pcs
Electrical system1.Battery: 2X12V/ 165Ah2.Alternator:28V-1500kw3. Starter: 7.5Kw/24V
CabHOWO76 cab


Packing and Shipping

图片 6.jpg

Message
Submit
FAQ

Q1. Why choose us? What difference from other suppliers?

Shandong Jiyake Automobile Sales Co., Ltd. is a vehicle manufacturer, which integrates production, scientific research and sales.
* Save your budget -- Manufacturer direct sale, no middleman.
* Quick Response -- Working all the time, all kinds of social media, you could contact us directly. Most problems can be solved within 12 hours.
* Delivery guarantee -- 25-40 days after receiving the deposit.
* Production tracking -- We will actively inform you of the production progress every week to ensure that you are aware of the production situation.
* Inspection -- A inspection report to you before delivery.
* After-sales service -- After-sale guarantee service, secure your order.

Q2. Which markets do your vehicle export to?

We exported the flatbed trailers, sidewall trailers, Fence trailer, dump trucks, tipper trailers,Low bed trailer to all over the
world, especially for the Africa Market and Mid east markets, the clients come from Djibouti, Ghana, Mozambique, Mauritania, Saudi Arabia, Tanzania, Benin, Indonesia, Thailand and so on.

Q3. What can you buy from us?

Semi Trailer, Flatbed Semi Trailer, Lowbed Semi Trailer, Dump Trailer, Tank Truck.

Q4. What information should I let you know if I want to get a quotation?

Please let us know the your purpose,road condition,cargo type,tons of your cargo,dimensions of trailer,quantity etc. The more info you provide, the more accurate model and price you will get.

Q5. Is it available to print our own brand on the vehicle?

Totally acceptable as you wish.
